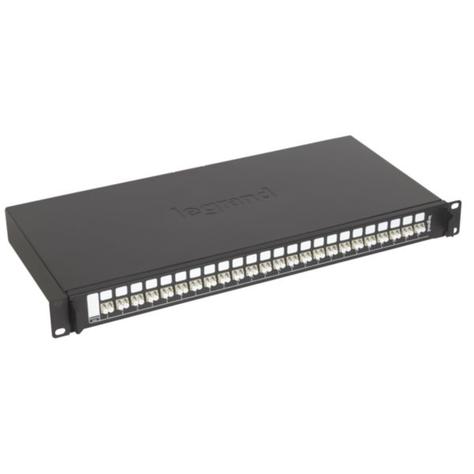

Metal 19 inches pre-equipped fibre optic drawers with 4 cable entries, supplied with screw fixing kit, 2 cable glands (diameter 13.5 and 16mm), coiling system and splicing cassette.
Technical characteristics
Maximum capacity : 24 LC multimode connectors for 48 fibres
Sliding : end stop at a 30° angle for easier wiring.
Panel and optic port marking on dedicated marking areas
Height 1U, depth 220mm
Color black
Recommendations / Restrictions
Up to 48 fibres. Suitable for a large number of active devices. Recommended in the generic standards ISO/IEC 11801 and EN 50173.
Les + prod
Installation
Supplied with screws and wiring accessories : 4 screws and nuts/4 screws, 2 cable glands (1 x PG16/1 x PG13.5), 2 accessories for coiling the fibres, 1 drawer holder for fixing on the rack, 1 splice holder, fitted but repositionable
Usage
Panel and optical ports marked on dedicated marking area.
Advantages
Panel marking area for labelling
